Master Series - Electric Full-Size Convection Ovens w/ Simple Control

Master 200 Solid State Control - Standard or Deep Depth - Single or Double Deck

The Master Series Convection Ovens from Garland deliver consistently better baking results — throughout the entire cavity — than you ever thought possible. Gone are the days where you need to turn your pans halfway through the cook cycle. The innovative airbaffling system and the industry’s largest blower wheel maximize airflow and evenly channels it throughout the entire oven cavity resulting in very precise cooking results throughout. Master Series Convection Ovens manage energy and efficiency no matter what the fuel source – gas or electric.

Macro Values (These are set programatically in the App_Code/Manitowoc/Classes/Manitowoc.cs under ProductHelpers.SetProductMacros()
ProductNodeAliasPath: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/Master-Series-Electric-Full-Size-Convection-Ov-(1)
ValidVariantIDs: 56072
ValidSkuIDs: 56077
DocAssetList: srfmn|xjrjk|fkdiy|wqijak|hvmon|udzhi|wdjxe|ozpsm|mrckq|btpct|mnzhy
ImgAssetList: hiklwr
VidAssetList:
Features: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/Master-Series-Electric-Full-Size-Convection-Ov-(1)/%
Categories: convection
Attributes:
Brands: gar
Related Products:
Related Variants:
Related Skus:
DisplayFeatures: True
DisplayTechSpecs: True
DisplayAccessories: True
  • Decks
    • Available in Single / Double Decks
  • Energy Output
    • 10.4 kW per oven
  • Energy Saving
    • Auto-set back, energy saving and Auto Cool-Down features
  • Interior
    • Porcelain enameled oven interior with coved corners
  • Racks
    • 6 oven racks and 13 position rack guides
  • Ruggedly Built
    • Stainless Steel front, sides and top.
  • Simple Control
    • Master 200 Series control with electric thermostat and timer
  • Thermal Window
    • 60/40 dependent door design with double pane thermal window in both doors and interior lighting
Master Series Full-Size Electric Convection Oven w/Simple Control
W x D x H 38" x 411/4" x 571/2"
96.5cm x 104.8cm x 146.1cm
Weight 510 lb
231.3 kg
Power Output 10.40 0
Power Input Type Electric
Primary Power Input 208-240 V x 60 Hz x 1 PH
208-240 V x 60 Hz x 3 PH
Certifications CULNSFUL
Back Enclosure
Back enclosure Stainless Steel
Canopy Diverter
Canopy diverter 1951229, S/S
Connect Vent
Direct connect vent 1951217
Doors
Stainless Steel doors (Specify with order)
Interior liner
Stainless Steel oven interior liner
Lo-Profile Casters
Lo-Profile casters with front brakes (4) (Double ovens only)
Open Base
Open Base with 25" legs, S/S
Oven Racks
Extra oven rack standard depth (1922211), deep depth (1922212)
Swivel Casters
Swivel casters set of 4 polycasters with front brakes

Brochure & Sell Sheets

Convectional Thinking

Master Convection Oven Feature Focus ''Doors''

Master Convection Oven Feature Focus ''Legs''

CAD Symbols (KCL Cutsheets)

Deep-Depth, Double-Deck MCO-ED-20-S

Deep-Depth, Single-Deck MCO-ED-10-S

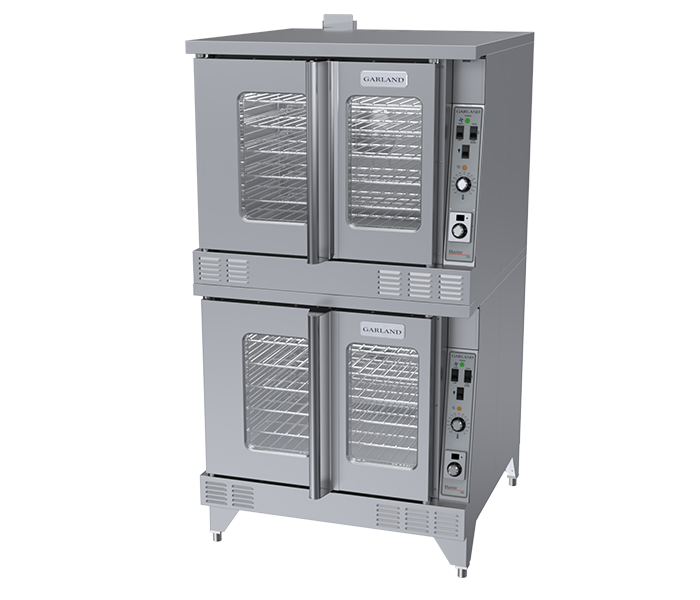

Standard-Depth, Double-Deck MCO-ES-20-S

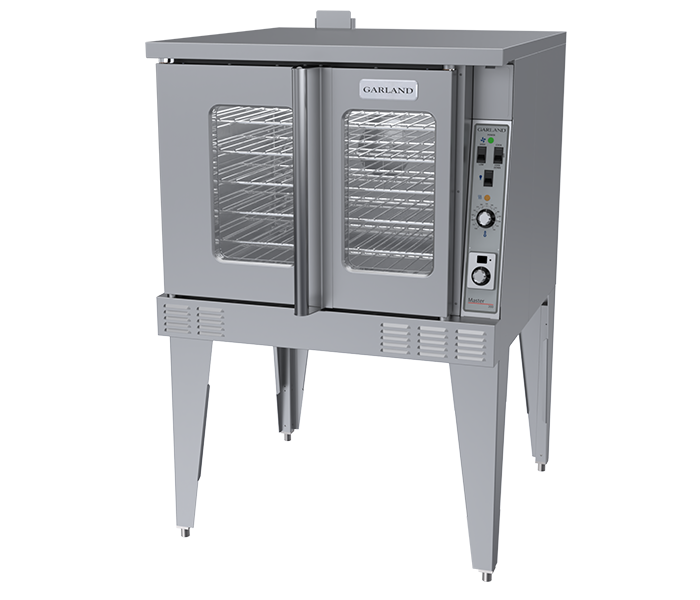

Standard-Depth, Single-Deck MCO-ES-10-S

Owner Instruction Manual

Instruction Manual, Part #1955203

Parts Catalog List

Current Parts List, All Electric MCO

Service Checklist

Start-Up/Performance Checklist, Garland/US Range/Sunfire Equipment

Specification Sheets

MCO-ES/ED-10/20S
