US Range - Summit Series - Gas Full-Size Convection Ovens w/ Simple Control

Solid State Control - Single or Double Deck

U.S. Range Summit Full-Size Standard Depth, gas convection oven. 53,000 BTU (15.53 kW) cavity, 3/4 HP fan motor with twospeed fan speed control. Direct spark ignition. Natural or propane gas. Solid State Control with 60-minute timer. Porcelain enameled oven interior with coved corners, five (5) oven racks and 10-position rack guides. All model interiors are 29" (736mm) W by 24" (610mm) H, depth is 24" (610mm) Stainless steel front, sides, top, and legs. 60/40 dependent door design with double pane thermal window in left-hand door and interior lighting. 200 Models are double deck units.

Macro Values (These are set programatically in the App_Code/Manitowoc/Classes/Manitowoc.cs under ProductHelpers.SetProductMacros()
ProductNodeAliasPath: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/US-Range-Summit-Series-Gas-Full-Size-Convectio
ValidVariantIDs: 57060,57066
ValidSkuIDs: 57065,57071
DocAssetList: wqijak|djqlb|ebgss|mdack
ImgAssetList: bctipb
VidAssetList: vflvh|bdvld|cgwbg|bohvo|tofif
Features: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/US-Range-Summit-Series-Gas-Full-Size-Convectio/%
Categories: convection
Attributes:
Brands: gar
Related Products:
Related Variants:
Related Skus:
DisplayFeatures: True
DisplayTechSpecs: True
DisplayAccessories: True
  • 3/4 HP Fan Motor
    • Two-speed fan control (high and low) with 3/4 HP fan motor
  • BTU's
    • Total of 53,000 BTU(15.53 kW) loading per oven cavity
  • Decks
    • Available in Single / Double Decks
  • Direct Spark Ignition
    • Direct spark ignition with 100% safety shutoff
  • Interior
    • Porcelain enameled oven interior with coved corners
  • Racks
    • Five (5) chrome plated ovens racks on 10-position rack guides
  • Ruggedly Built
    • Stainless Steel front, sides and top.
  • Simple Control
    • Solid Sate control with electromechanical timer
  • Thermal Window
    • 60/40 dependent door design with double pane thermal window in both doors and interior lighting
SUMG-100
W x D x H 38" x 411/4" x 571/2"
96.5cm x 104.8cm x 146.1cm
Weight 750 lb
340.2 kg
Power Input Type Gas - Natural
Primary Power Input 115-120 V x 60 Hz x 1 PH
Certifications CULNSFUL

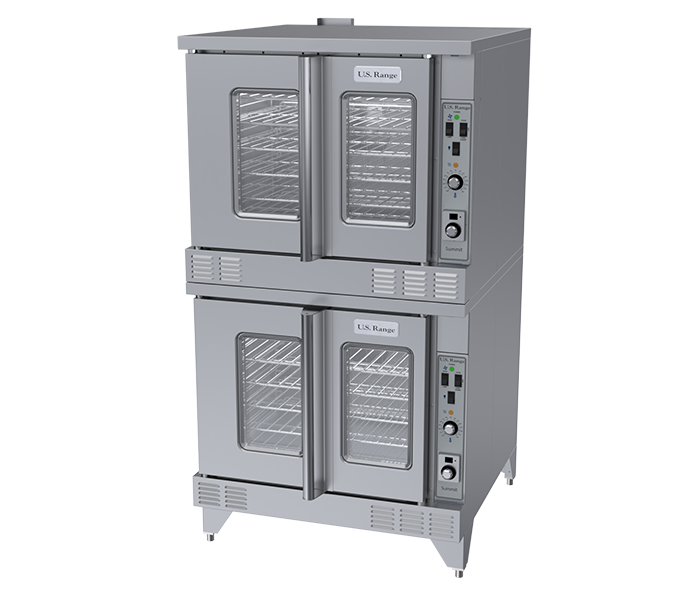

SUMG-200
W x D x H 38" x 411/4" x 701/2"
96.5cm x 104.8cm x 179.1cm
Weight 1500 lb
680.4 kg
Power Input Type Gas - Natural
Certifications CULNSFUL
Back Enclosure
Back enclosure Stainless Steel
Connect Vent
Direct connect vent 1951217
Doors
Stainless Steel Solid Door(s) (Specify with order)
Gas Flex Hose
Gas flex hose and quick disconnect 3/4" N.P.T. x 5' with restraining device PT# 1591502
Lo-Profile Casters
Lo-Profile Casters-Set of 4 w/Front Brakes (Double deck only)
Open Base
Open Base with 25" legs, S/S
Oven Racks
Extra oven rack standard depth (1922211), deep depth (1922212)
Swivel Casters
Swivel casters set of 4 polycasters with front brakes
Window
Windows in both doors

Product Videos

US Range - Efficient, Even Heat

US Range - Largest Usable Cooktop

US Range - Low Maintenence

US Range - Proven Durability

US Range - Versatile Oven

Owner Instruction Manual

US Range Summit Series Gas Convection Oven (SUMG) Installation/Operation/Maintenance - English/French

Parts Catalog List

US Range Convection Ovens, Gas, Summit SUMG Series

Service Checklist

Start-Up/Performance Checklist, Garland/US Range/Sunfire Equipment

Specification Sheets

Spec Sheet - SUMG-100/200
