Master Series - Electric Half-Size Convection Oven: Models MCO-E-5-C, MCO-E-25-C

Master 200 Solid State control - Single or Double Deck

The Master Series Convection Ovens from Garland deliver consistently better baking results — throughout the entire cavity — than you ever thought possible. Gone are the days where you need to turn your pans halfway through the cook cycle. The innovative air-baffling system and the industry’s largest blower wheel maximize airflow and evenly channels it throughout the entire oven cavity resulting in very precise cooking results throughout. Master Series Convection Ovens manage energy and efficiency for consistent results and cost-effective operation.

Macro Values (These are set programatically in the App_Code/Manitowoc/Classes/Manitowoc.cs under ProductHelpers.SetProductMacros()
ProductNodeAliasPath: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/Master-Series-Electric-Half-Size-Convection-Oven
ValidVariantIDs: 55929,55935
ValidSkuIDs: 55934,55940
DocAssetList: amook|wqijak|bgbga|jgloj
ImgAssetList: hiklwr
VidAssetList:
Features: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/Master-Series-Electric-Half-Size-Convection-Oven/%
Categories: convection
Attributes:
Brands: gar
Related Products:
Related Variants:
Related Skus:
DisplayFeatures: True
DisplayTechSpecs: True
DisplayAccessories: True
  • Construction
    • Stainless steel front, sides, top and legs
  • Control
    • Master 200 Solid State Control with 150° (66°C) to 500°F (260°C) temperature range
  • Door
    • Single door with double pane thermal window
  • Electrical
    • Total of 5.6 kW load per oven cavity
      Available 208 or 240 volt, single or three phase
  • Legs
    • 4” (102mm) stainless steel legs with adjustable bullet leveling leg insert.
  • Options
    • Available in single (-5-C) or double deck (-25-C)
  • Oven Interior
    • Porcelain enameled oven interior with coved corners
  • Two Speed
    • 2-Speed 1/3 HP motor with thermal hi-limit and centrifugal switch protection

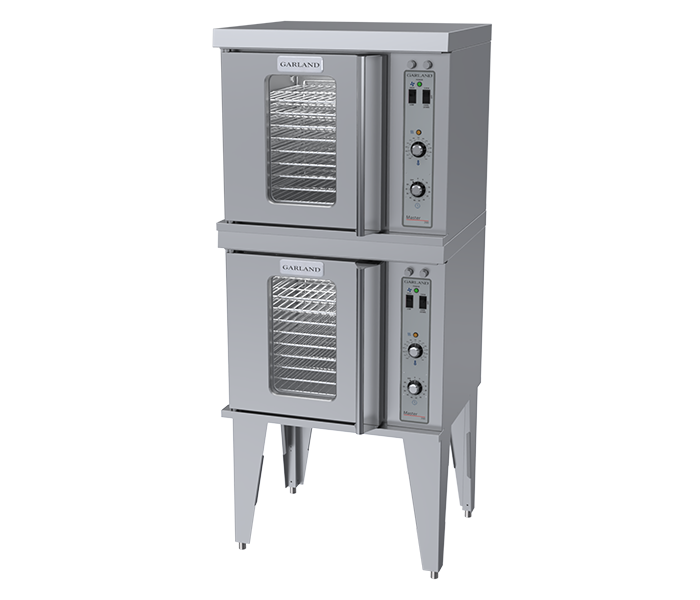

Model MCO-E-25-C
W x D x H 301/2" x 251/4" x 511/2"
77.5cm x 64.1cm x 130.8cm
Weight 680 lb
308.4 kg
Power Output 11.20 0
Power Input Type Electric
Primary Power Input 208-240 V x 60 Hz x 1 PH
208-240 V x 60 Hz x 3 PH
Certifications CULNSF
Model MCO-E-5-C
W x D x H 301/2" x 251/4" x 293/4"
77.5cm x 64.1cm x 75.6cm
Weight 340 lb
154.2 kg
Power Output 5.60 0
Power Input Type Electric
Primary Power Input 208-240 V x 60 Hz x 1 PH
208-240 V x 60 Hz x 3 PH
Certifications CULNSF
34” (864mm) high stainless steel equipment stand. Available with optional rack guides and racks (single deck only)
7.5 kW Element Package Upgrade
Deck fasteners with Flanged Feet
Extra Oven Rack
Power Cord Set with Plug
Stainless Steel 21-1/4" (504mm) Legs (double deck only)
Stainless Steel Main Back
Stainless Steel Solid (no window) Oven Door
Swivel casters w/front brakes (single decks overall height 31 3/4” / 806mm; double stacked units overall height 57” / 1448mm)

Owner Instruction Manual

Instruction Manual, Part #260BGL

Parts Catalog List

Parts Manual, All MCO-E-5/25-C

Service Checklist

Start-Up/Performance Checklist, Garland/US Range/Sunfire Equipment

Specification Sheets

MCO-E-5/25-C
