US Range - Summit Series - Electric Full-Size Convection Ovens w/ Simple Control

Solid State Control - Single or Double Deck

U.S. Range Summit Full-Size Standard Depth, electric convection oven. 10.4 kW / cavity, 3/4 HP fan motor with two-speed fan speed. Solid Satet Control with 60-minute timer. Porcelain enameled oven interior with coved corners, five (5) oven racks and 10-position rack guides. All model interiors are 29" (736mm) W by 24" (610mm) H, depth is 24" (610mm). Stainless steel front, sides, top, and legs. 60/40 dependent door design with double pane thermal window in left-hand door and interior lighting.

Macro Values (These are set programatically in the App_Code/Manitowoc/Classes/Manitowoc.cs under ProductHelpers.SetProductMacros()
ProductNodeAliasPath: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/US-Range-Summit-Series-Electric-Full-Size-Conv
ValidVariantIDs: 57013,57019
ValidSkuIDs: 57018,57024
DocAssetList: vrocn|spebi|ptgdd|wqijak
ImgAssetList: bctipb
VidAssetList: cgwbg|bohvo|tofif|bdvld|vflvh
Features: /Products-Parts-and-Accessories/Products/Garland-Group/Ovens/Convection-Ovens/US-Range-Summit-Series-Electric-Full-Size-Conv/%
Categories: convection
Attributes:
Brands: gar
Related Products:
Related Variants:
Related Skus:
DisplayFeatures: True
DisplayTechSpecs: True
DisplayAccessories: True
  • 3/4 HP Fan Motor
    • Two-speed fan control (high and low) with 3/4 HP fan motor
  • Decks
    • Available in Single / Double Decks
  • Door Closure
    • Full length, stainless steel positive door closure
  • Electrical Loading
    • Total of 10.4 kW loading per oven cavity
  • Interior
    • Porcelain enameled oven interior with coved corners
  • Racks
    • Five (5) chrome plated ovens racks on 10-position rack guides
  • Ruggedly Built
    • Stainless Steel front, sides and top.
  • Simple Control
    • Solid Sate control with electromechanical timer
  • Thermal Window
    • 60/40 dependent door design with double pane thermal window in both doors and interior lighting

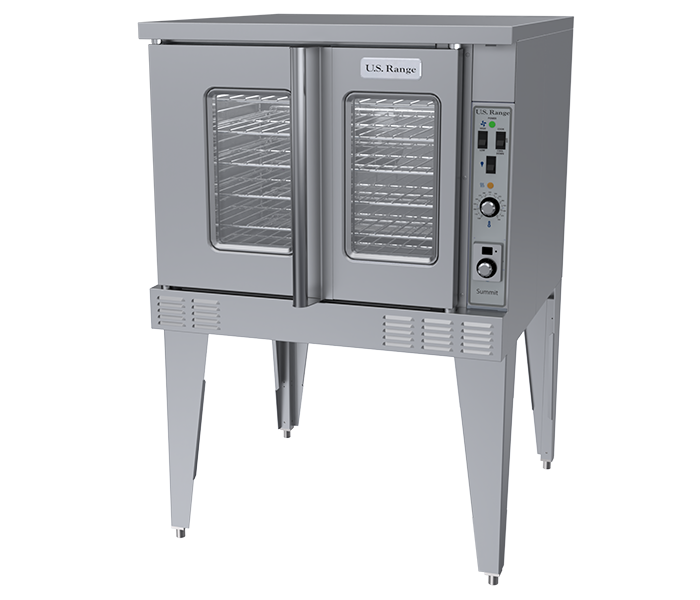

SUME-100
W x D x H 38" x 411/4" x 571/2"
96.5cm x 104.8cm x 146.1cm
Weight 750 lb
340.2 kg
Power Input Type Gas - Natural
Primary Power Input 115-120 V x 60 Hz x 1 PH
Certifications CULNSFUL
SUME-200
W x D x H 38" x 411/4" x 701/2"
96.5cm x 104.8cm x 179.1cm
Weight 1500 lb
680.4 kg
Power Input Type Electric
Primary Power Input 208-240 V x 60 Hz x 1 PH
208-240 V x 60 Hz x 3 PH
Certifications CULNSFUL
460 Volt
460 volt, three phase (per deck)
Back Enclosure
Back enclosure Stainless Steel
Doors
Stainless Steel Solid Door(s) (Specify with order)
Lo-Profile Casters
Lo-Profile Casters-Set of 4 w/Front Brakes (Double deck only)

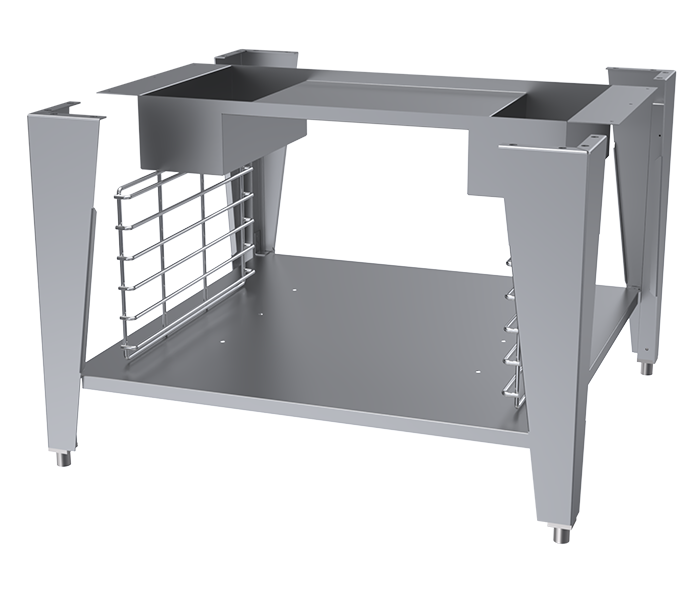

Open Base
Open base with rack guides and shelf (stainless steel)
Oven Racks
Extra oven rack standard depth (1922211), deep depth (1922212)
Swivel Casters
Swivel casters set of 4 polycasters with front brakes
Window
Windows in both doors

Product Videos

US Range - Efficient, Even Heat

US Range - Largest Usable Cooktop

US Range - Low Maintenence

US Range - Proven Durability

US Range - Versatile Oven

Owner Instruction Manual

US Range Summit Series Electric Convection Oven (SUME) Installation/Operation/Maintenance - English/French

Parts Catalog List

US Range Convection Ovens, Electric, Summit SUME Series

Service Checklist

Start-Up/Performance Checklist, Garland/US Range/Sunfire Equipment

Specification Sheets

Spec Sheet - SUME-100/200
