N8200-ST

Home
N8200-ST

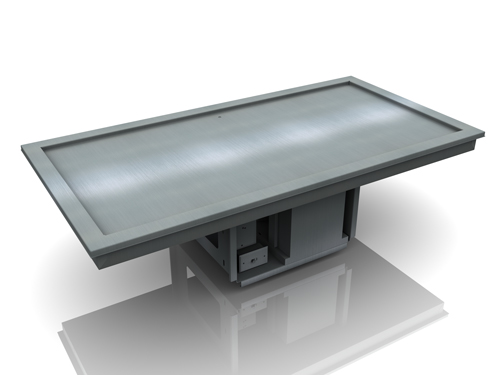

N8200-ST

Drop-In Self-Contained Sheet Pan Frost Top

Features
Technical Specifications
Accessories
Videos
Downloads

Exterior
Top is one-piece, heavy-gauge stainless steel. Top has a drain trough. Top is recessed .75” (1.9cm) above counter surface. Refrigeration lines are secured to the underside of the top and insulated with high-density, environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) closed-cell polyurethane. Exterior housing is heavy-gauge galvanized steel.

Refrigeration system
Condensing unit is suspended below the frost top on a heavy-gauge steel frame and uses R290 refrigerant. Unit has an ON/OFF toggle switch, an 8’ (2.4m) cord and NEMA 5-15 plug.

Stainless Steel Louver
Unit has (1) stainless steel louver provided for field installation; cutout dimensions are 12.00” x 23.50” (30cm x 60cm). A second opening at the rear of the cabinet must be provided at installation to allow for proper air circulation.

N8230-ST

W x D x H	295/8" x 22" x 1511/16" 75.2 cm x 55.9 cm x 39.8 cm
Weight	142 lb 64.4 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.5 Amps
Certifications

N8240-ST

W x D x H	3911/16" x 295/8" x 1511/16" 100.8 cm x 75.2 cm x 39.8 cm
Weight	168 lb 76.2 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.5 Amps
Certifications

N8256-ST

W x D x H	555/8" x 22" x 1511/16" 141.3 cm x 55.9 cm x 39.8 cm
Weight	193 lb 87.5 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.5 Amps
Certifications

N8258-ST

W x D x H	575/8" x 295/8" x 1511/16" 146.4 cm x 75.2 cm x 39.8 cm
Weight	209 lb 94.8 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.5 Amps
Certifications

N8275-ST

W x D x H	751/2" x 295/8" x 1511/16" 191.8 cm x 75.2 cm x 39.8 cm
Weight	239 lb 108.4 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.5 Amps
Certifications

	Single or double service flip-up sneezeguards
	Relocate compressor
	Special voltage* 220V/50 cycle electrical system *Inclusion of this option will alter electrical specifications of the unit
	Remote Toggle Switch Ships loose as Part# AS000-473-003W
