Garland Group - M45 Master Series 34" Hot Top Ranges

M45 Master Series 34" Hot Top Ranges

Heavy-Duty Range with 2 Front-Fired Hot Tops

Available with a standard oven, storage cabinet base, or as a modular top.

Ovens – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Front-Fired Hot Tops – Heavy cast-iron, front-fired hot top plates with 3 individually controlled jet burners rated at 45,000 BTU/hr total for each section. Removable cast-iron rings and lids, perfect for sautéing.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

M45R Master Series 34" Hot Top Range with Standard Oven

Oven – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Front-Fired Hot Tops – Two heavy cast-iron, front-fired hot top plates with 3 individually controlled jet burners rated at 45,000 BTU/hr total for each section. Removable cast-iron rings and lids, perfect for sautéing.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	510 lb 231.3 kg
Power Output	130000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

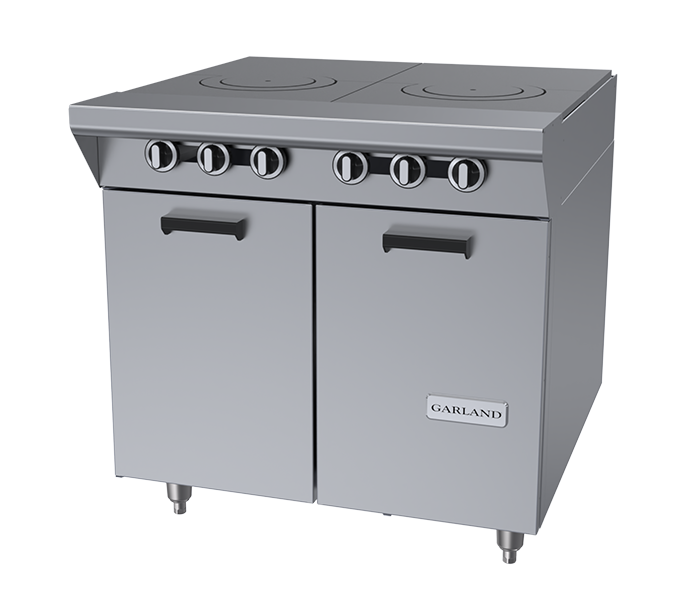

M45S Master Series 34" Hot Top Range with Storage Cabinet

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Front-Fired Hot Tops – Two heavy cast-iron, front-fired hot top plates with 3 individually controlled jet burners rated at 45,000 BTU/hr total for each section. Removable cast-iron rings and lids, perfect for sautéing.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	410 lb 186 kg
Power Output	90000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

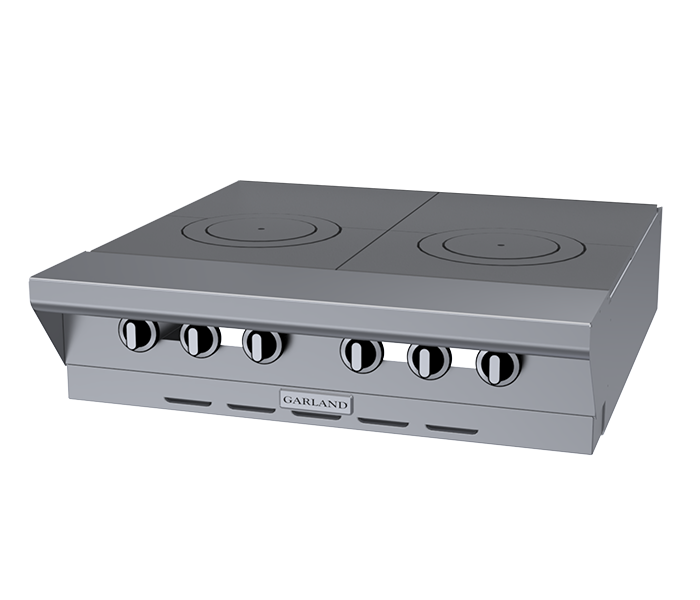

M45T Master Series 34" Modular Hot Top Range

Front-Fired Hot Tops – Two heavy cast-iron, front-fired hot top plates with 3 individually controlled jet burners rated at 45,000 BTU/hr total for each section. Removable cast-iron rings and lids, perfect for sautéing.

Stainless steel stand available, sold separately.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 91/2" 86.4 cm x 96.5 cm x 24.1 cm
Weight	305 lb 138.3 kg
Power Output	90000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications
